CNC, robots, industrial training help Freedman Seating

Automation, CNC, robotic welding help Freedman Seating with metal fabrication, as seen in a recent tour.

Courtesy: Mark T. Hoske, Control Engineering



Learning Objectives

  • Learn applications of CNC, robotic welding and metal-forming processes at the Freedman Seating Co.
  • See examples of manufacturing training at Jane Addams Resource Corp. (JARC) in Chicago.
  • Learn the steps that lead from manual processes, to digitalization and finally to full-blown digital transformation.

Automated manufacturing insights

  • Applications of CNC, robotic welding and metal-forming processes were described during a Freedman Seating Co. tour.
  • Examples of manufacturing training were shown at Jane Addams Resource Corp. (JARC) in Chicago, co-located with Freedman Seating Co.

Freedman Seating Co. offered tours in association with the Jane Addams Resource Corp. (JARC) Women in Manufacturing event, March 29.

While automated welding is part of the manufacturing process, manual welding also is needed. Welding, safety and CNC are among training certifications JARC offers in its onsite training facility at Freedman Seating Co.

Karen Arroyave, M.E., a Freedman Seating manufacturing engineer, gave the tour. She is working on a master’s degree to further advance manufacturing efficiency.

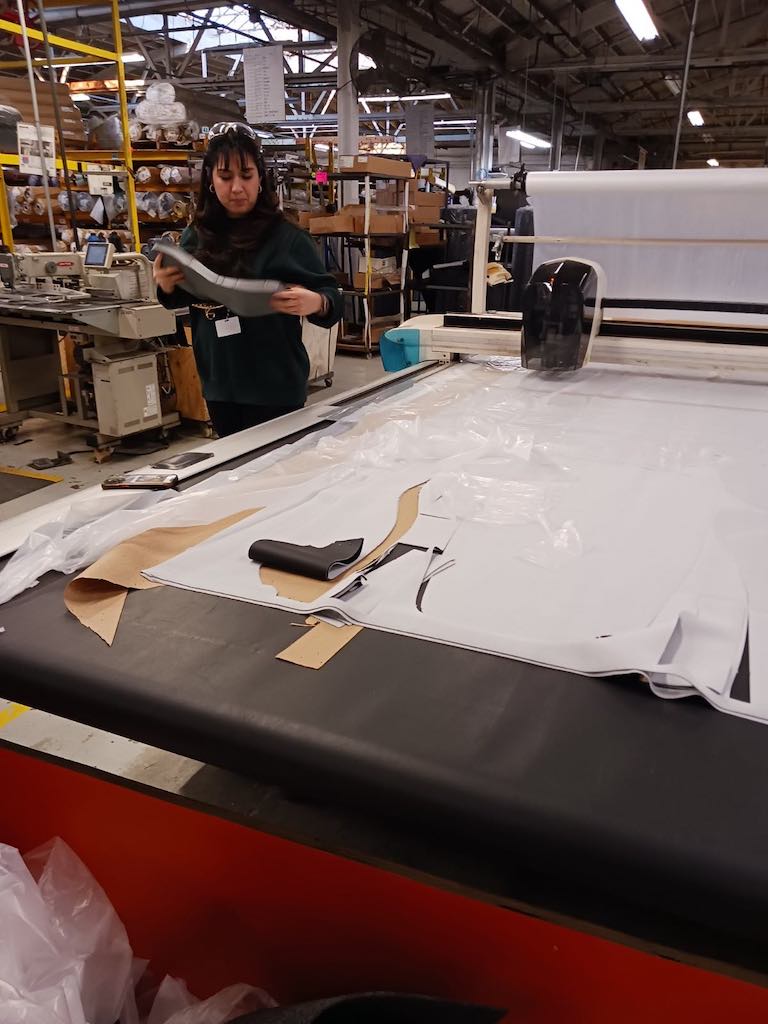

Multiple layers of fabric are cut using CNC-provided instructions at the Freedman Seating Co. location in Chicago. CNC also is used for some sewing (not shown). Courtesy: Mark T. Hoske, Control Engineering
Multiple layers of fabric are cut using CNC-provided instructions at the Freedman Seating Co. location in Chicago. CNC also is used for some sewing (not shown). Courtesy: Mark T. Hoske, Control Engineering

The 130-year-old company employs about 650, including 30 in a plant in Indiana, and was in the process of hiring 50 more people as of the tour. Freedman Seating began manufacturing buggy seats and now makes seats for campers, buses, trains and ferries. Processes combine manual and automated techniques and robots, using fabric, padding, sheet metal to make tubing and bases to integrate with other materials to construct a diverse range of vehicle seats.

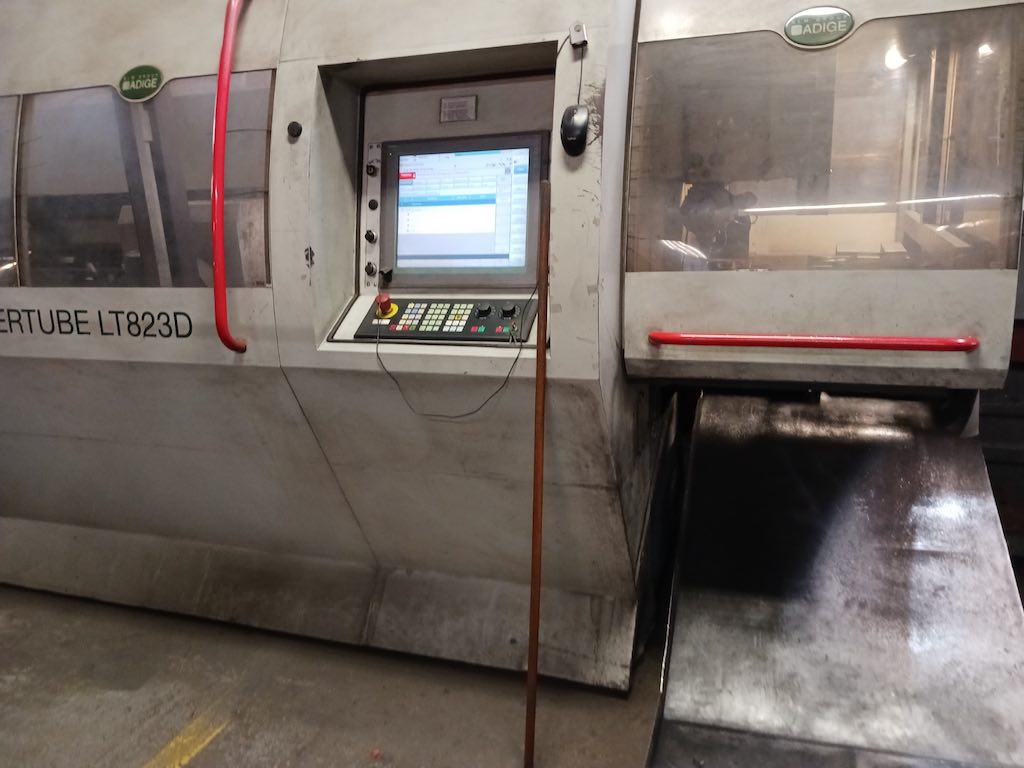

Lasertube metal tube forming machine makes tubes from flat steel at Freedman Seating Co. Courtesy: Mark T. Hoske, Control Engineering
Lasertube metal tube forming machine makes tubes from flat steel at Freedman Seating Co. Courtesy: Mark T. Hoske, Control Engineering

Computer-numerical control, automated cutting, forming, welding

In the cutting department, many layers of fabric are cut to fit using CNC automated cutting machines. Sewing uses automated and manual machines.

Laser-welding tube fabrication cuts and welds tubing used for seats. Tube bending and cutting are automated, along with sheet metal cutting, bending and fabrication for seat bases.

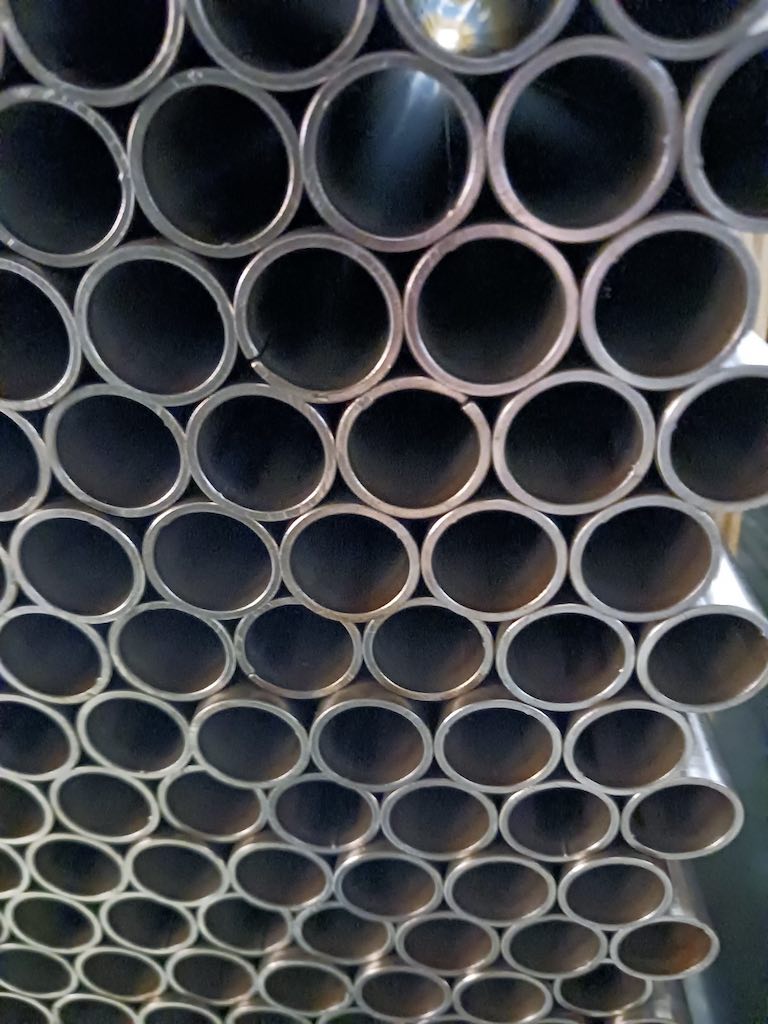

A stack of metal tubes at Freedman Seating Co. awaits bending into seat shape. Courtesy: Mark T. Hoske, Control Engineering
A stack of metal tubes at Freedman Seating Co. awaits bending into seat shape. Courtesy: Mark T. Hoske, Control Engineering

Vectis Automation provided two automated welding cells that work on seat bases using Universal Robots’ collaborative robots, wrapped for the application. (See photos below.)

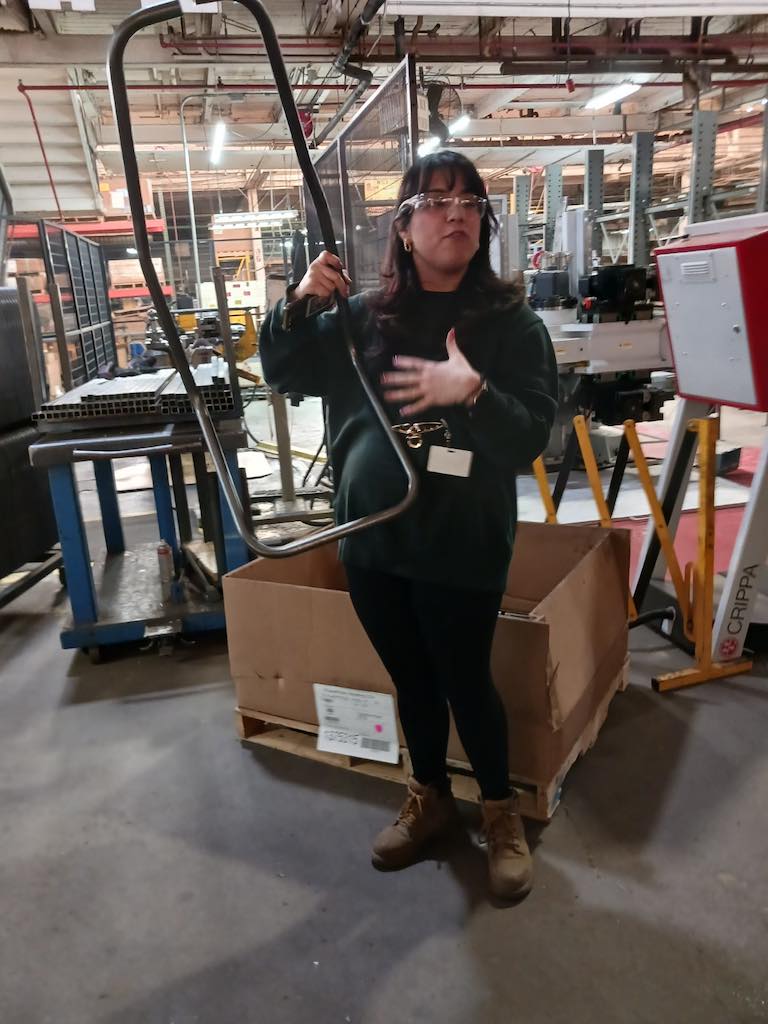

Freedman Seating's Karen Arroyave shows formed seat tubes prior to final bending. Courtesy: Mark T. Hoske, Control Engineering
Freedman Seating’s Karen Arroyave shows formed seat tubes prior to final bending. Courtesy: Mark T. Hoske, Control Engineering

Welding, CNC, 3D printing and other skills for manufacturing

The JARC manufacturing training portion of the tour included four welding booths, two CNC machines and a 3D printer that help teach manufacturing skills to those in need of higher-paying, more fulfilling careers than what they had. JARC also provides a wide range of manufacturing-related certifications, life skills and career training and placement at no cost to participants.

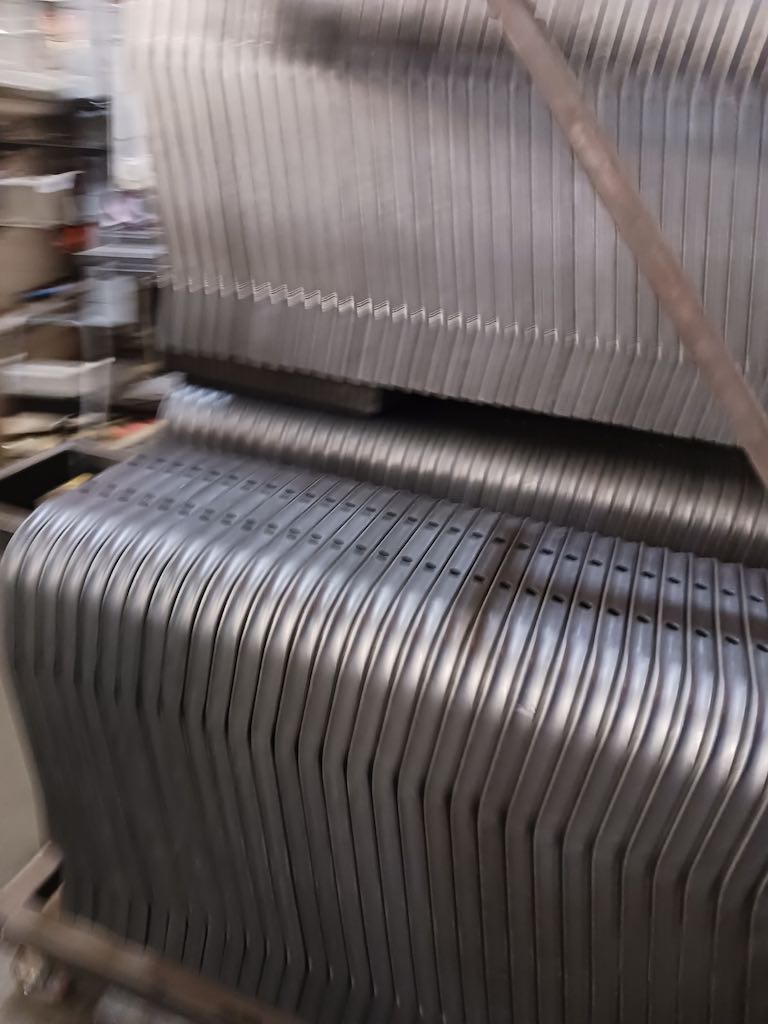

Stack of bent seat tubes looks like folding chairs at Freedman Seating. Courtesy: Mark T. Hoske, Control Engineering
Stack of bent seat tubes looks like folding chairs at Freedman Seating. Courtesy: Mark T. Hoske, Control Engineering

Mark T. Hoske is content manager, Control Engineering, CFE Media and Technology, [email protected].

KEYWORDS: Manufacturing tours, automation training

CONSIDER THIS

When seeing automation applied in other locations, what will be your takeaway?

ONLINE EXTRA

See additional photos below.

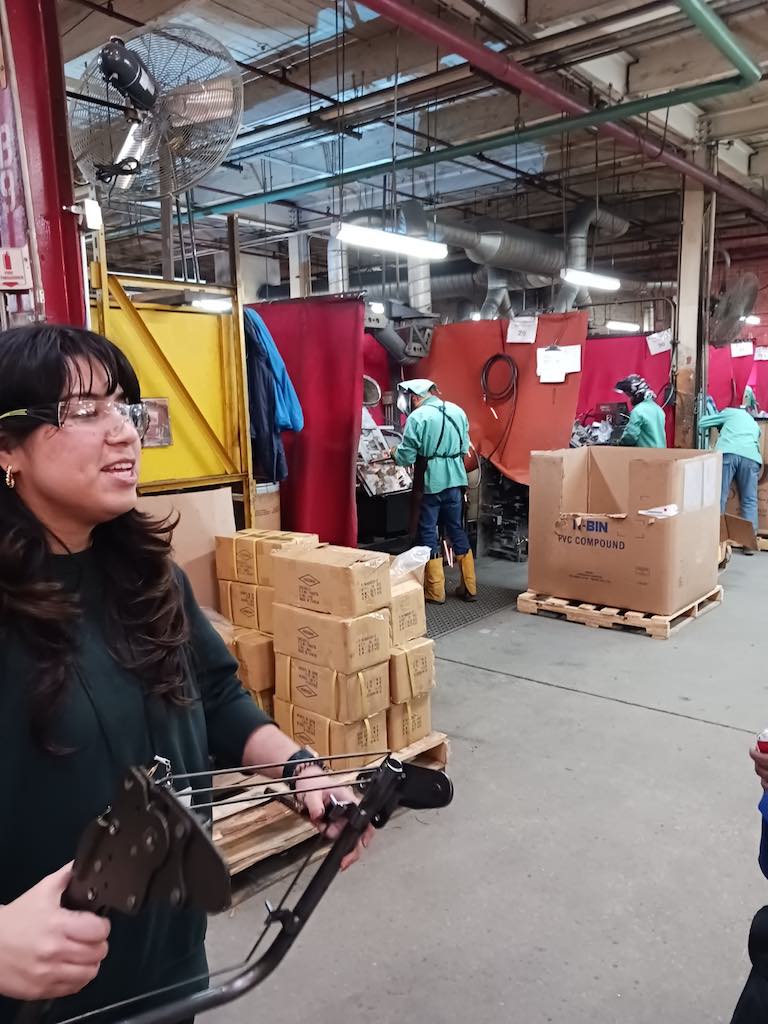

Freedman Seating's Karen Arroyave explains welding behind her. Courtesy: Mark T. Hoske, Control Engineering
Freedman Seating’s Karen Arroyave explains welding behind her. Courtesy: Mark T. Hoske, Control Engineering

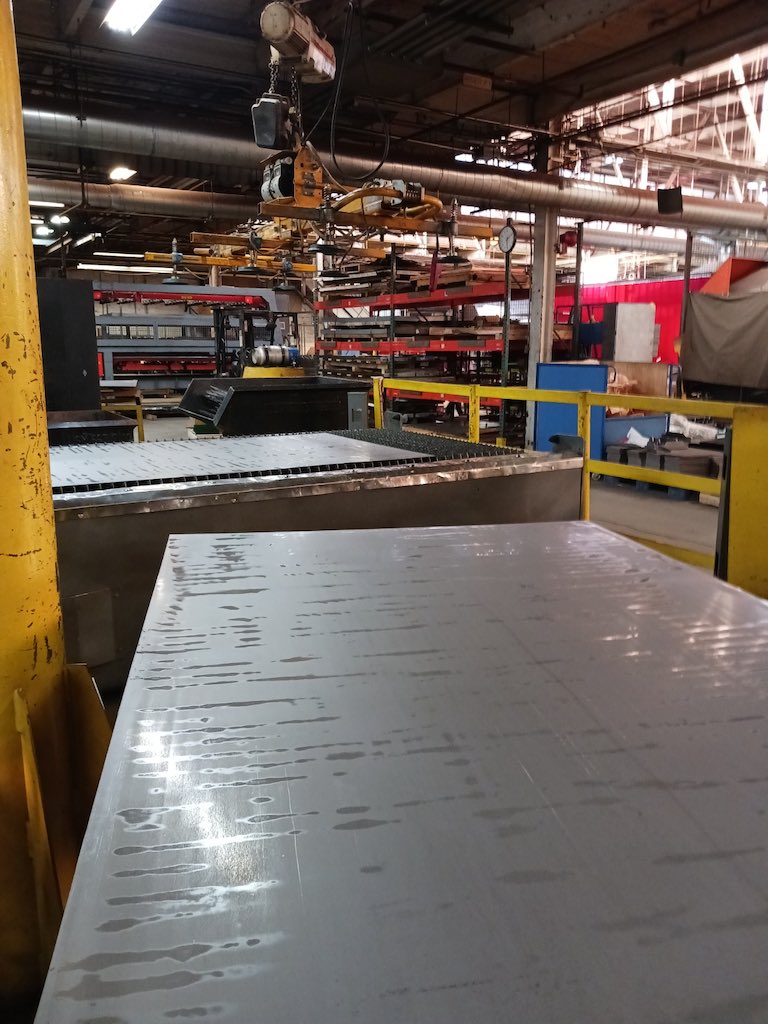

Rolled steel, a little larger than a 4 by 8 ft sheet of plywood, awaits laser cutting at Freedman Seating Co. Courtesy: Mark T. Hoske, Control Engineering
Rolled steel, a little larger than a 4 by 8 ft sheet of plywood, awaits laser cutting at Freedman Seating Co. Courtesy: Mark T. Hoske, Control Engineering

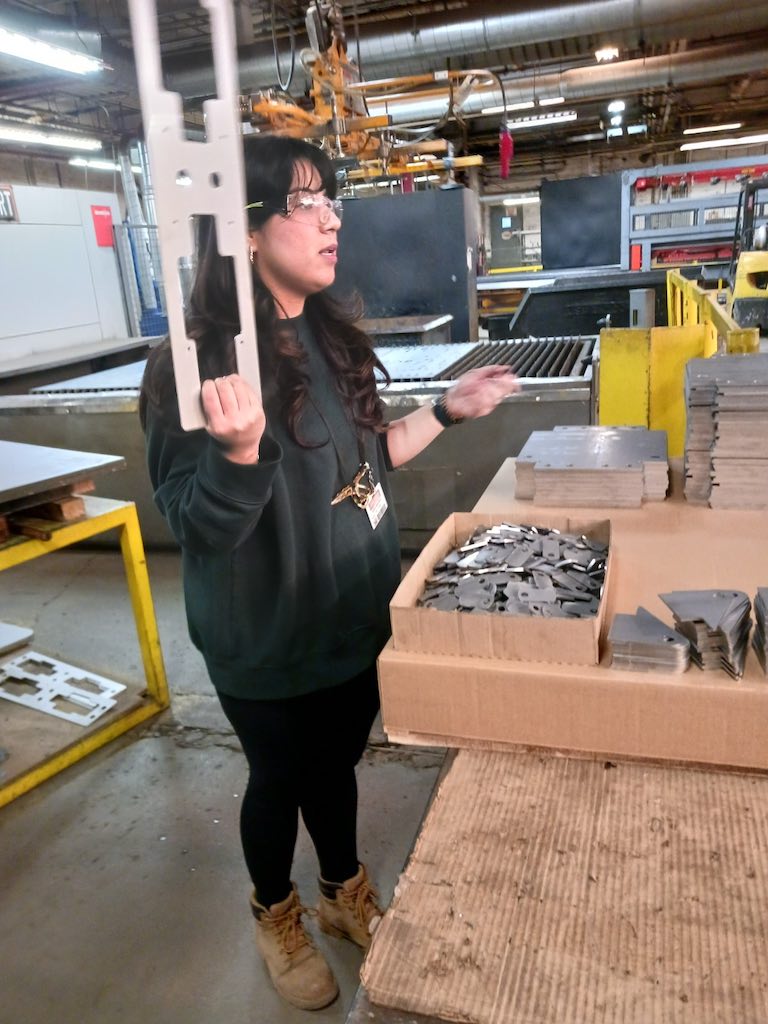

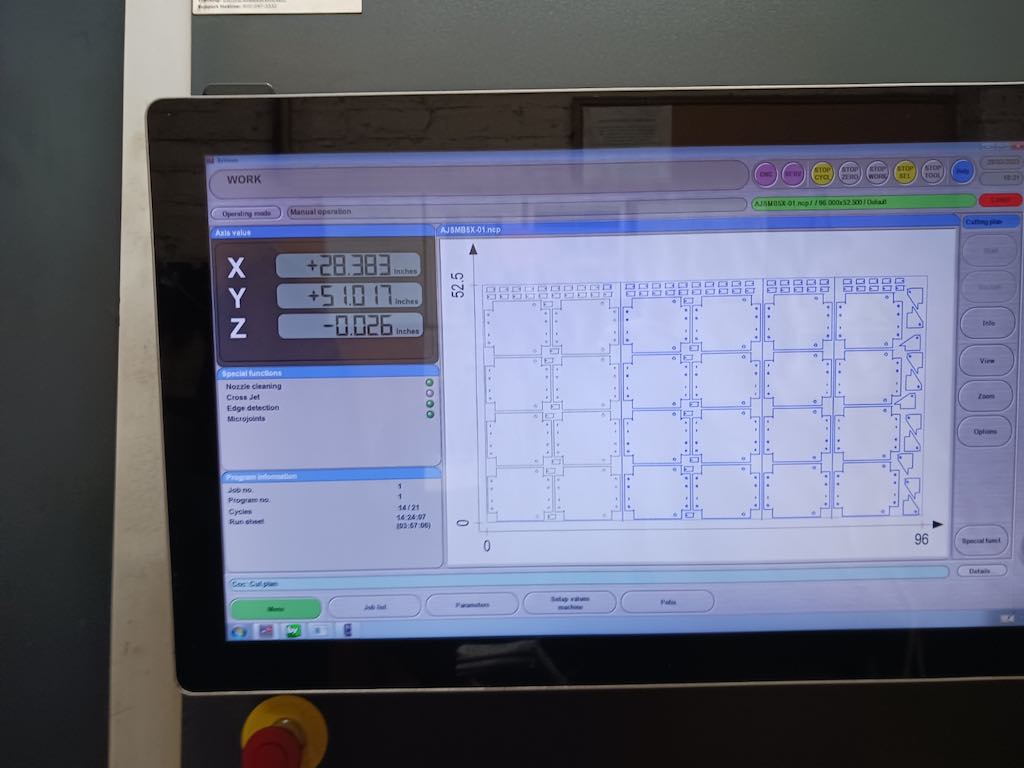

Laser cutting pattern is optimized to minimize waste, said Freedman Seating's Karen Arroyave. Courtesy: Mark T. Hoske, Control Engineering
Laser cutting pattern is optimized to minimize waste, said Freedman Seating’s Karen Arroyave. Courtesy: Mark T. Hoske, Control Engineering



A mallet can help separate laser-cut steel pieces at Freedman Seating. Courtesy: Mark T. Hoske, Control Engineering
A mallet can help separate laser-cut steel pieces at Freedman Seating. Courtesy: Mark T. Hoske, Control Engineering

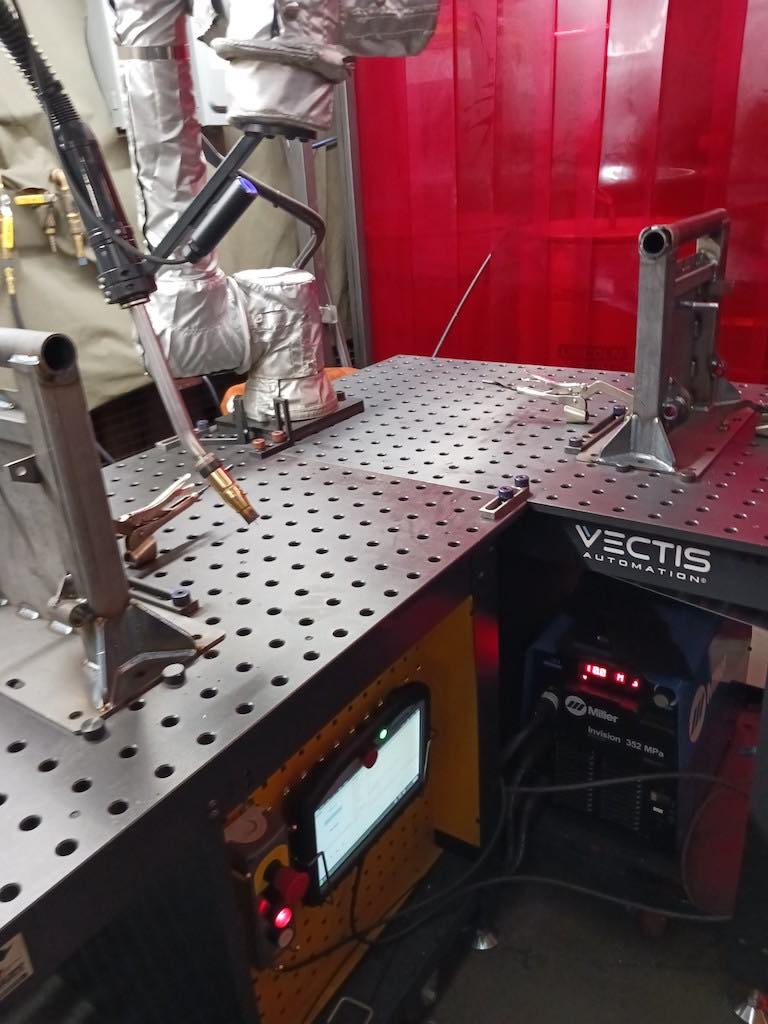

Vectis Automation provided two automated welding cells (one shown) that work on seat bases using Universal Robots collaborative robots, wrapped for the Freedman Seating application. Courtesy: Mark T. Hoske, Control Engineering
Vectis Automation provided two automated welding cells (one shown) that work on seat bases using Universal Robots collaborative robots, wrapped for the Freedman Seating application. Courtesy: Mark T. Hoske, Control Engineering

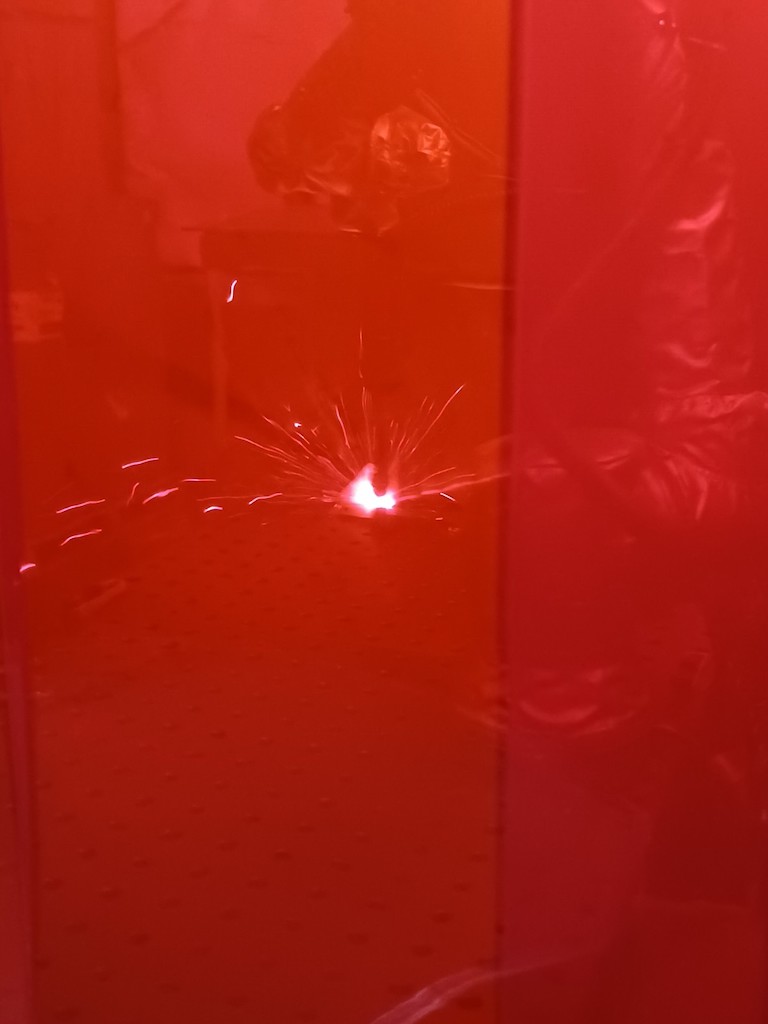

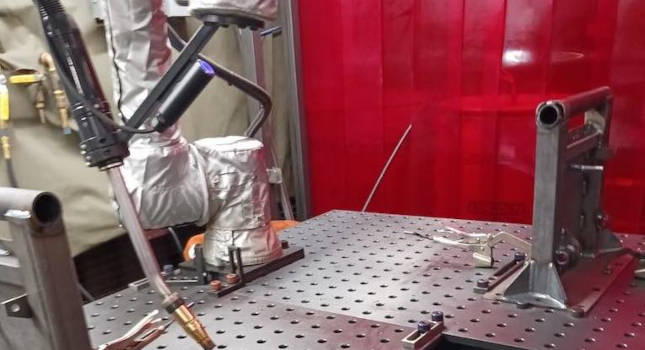

Universal Robots’ collaborative robot in a Vectris Automation welding workcell welds behind a safety curtain at Freedman Seating Co. Courtesy: Mark T. Hoske, Control Engineering
Universal Robots’ collaborative robot in a Vectris Automation welding workcell welds behind a safety curtain at Freedman Seating Co. Courtesy: Mark T. Hoske, Control Engineering



Applied welding expertise: Freedman Seating Co. fabricated and welded the welding hoods for the two collaborative welding robot workcells. Courtesy: Mark T. Hoske, Control Engineering
Applied welding expertise: Freedman Seating Co. fabricated and welded the welding hoods for the two collaborative welding robot workcells. Courtesy: Mark T. Hoske, Control Engineering

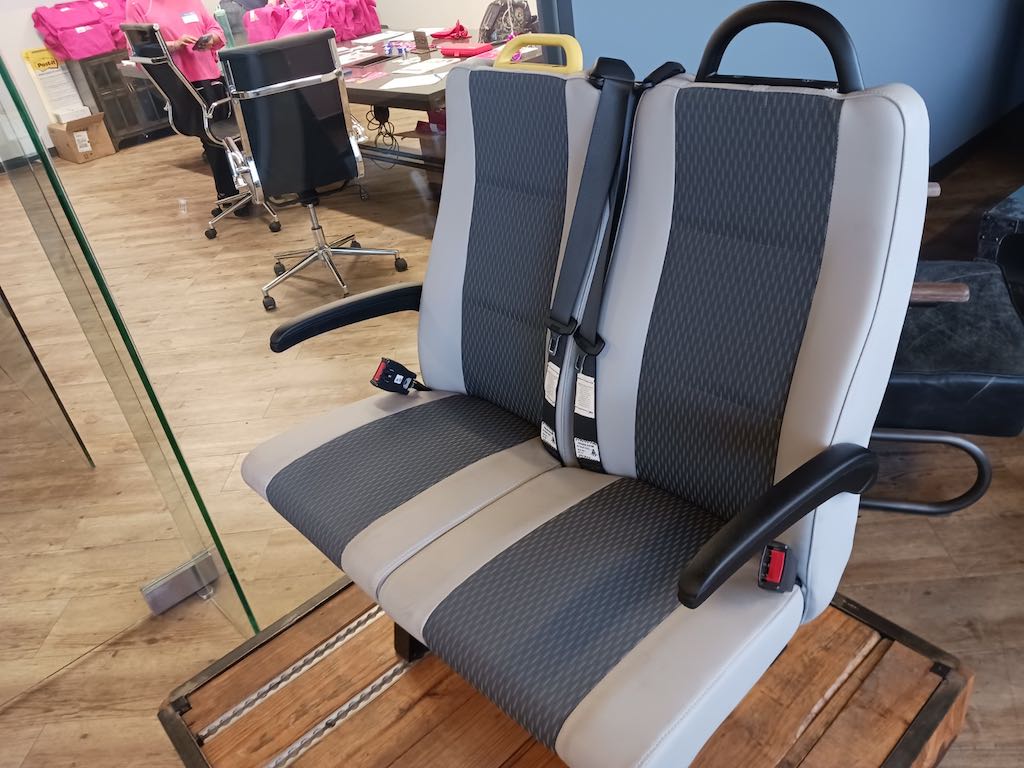

One of many types of finished seats manufactured by Freedman Seating Co. Courtesy: Mark T. Hoske, Control Engineering
One of many types of finished seats manufactured by Freedman Seating Co. Courtesy: Mark T. Hoske, Control Engineering

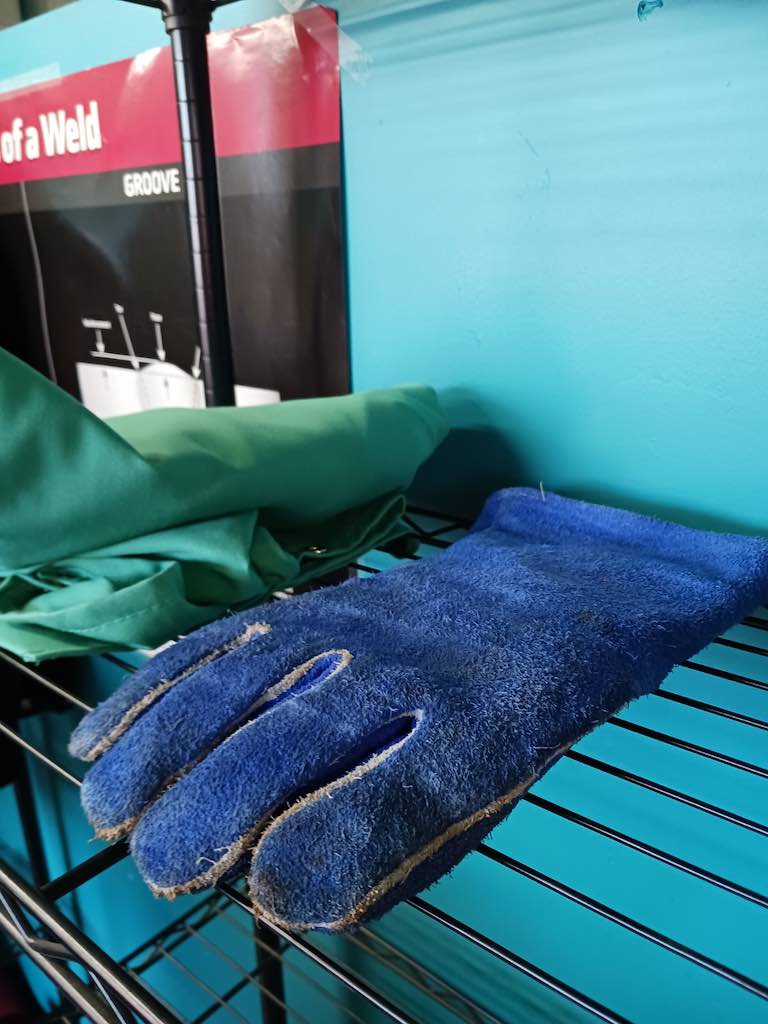

Personal protective equipment needed for various manufacturing processes, including welding, is among training offered by Jane Addams Resource Corp. (JARC) at its training center co-located with Freedman Seating Co. in Chicago. Courtesy: Mark T. Hoske, Control Engineering
Personal protective equipment needed for various manufacturing processes, including welding, is among training offered by Jane Addams Resource Corp. (JARC) at its training center co-located with Freedman Seating Co. in Chicago. Courtesy: Mark T. Hoske, Control Engineering

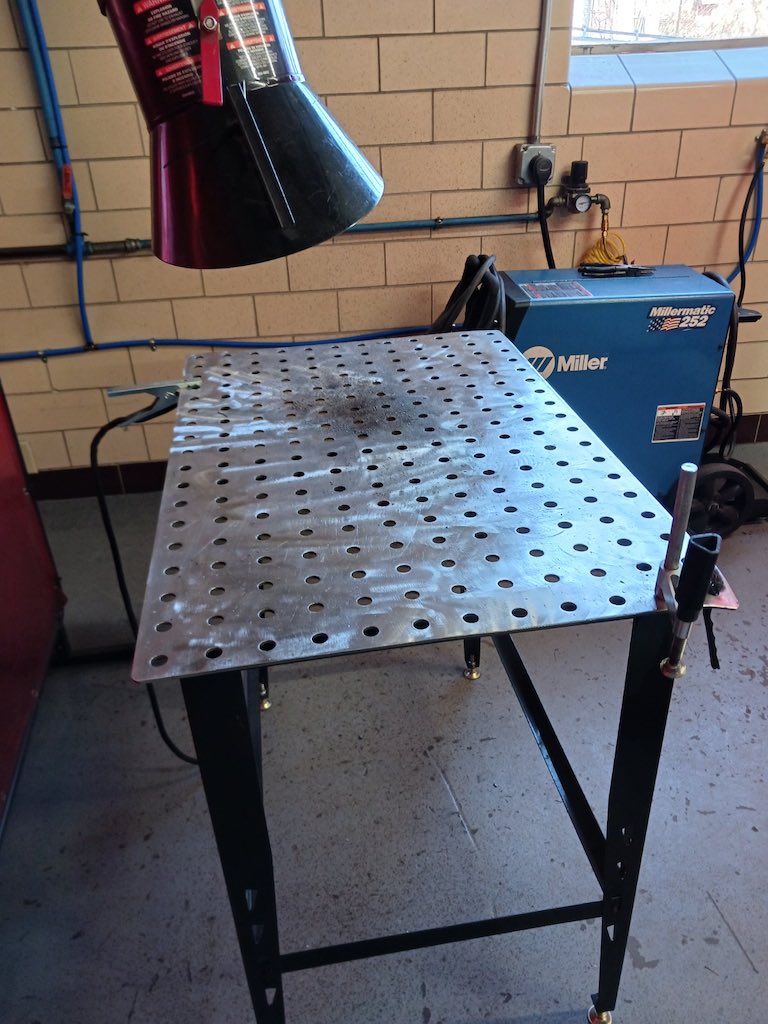

Welding booth and exhaust hood are shown at the Jane Addams Resource Corp. (JARC) at its training center at the Freedman Seating Co. location in Chicago. Courtesy: Mark T. Hoske, Control Engineering
Welding booth and exhaust hood are shown at the Jane Addams Resource Corp. (JARC) at its training center at the Freedman Seating Co. location in Chicago. Courtesy: Mark T. Hoske, Control Engineering
